TrafficJet™ Xpress

TrafficJet Xpress is built on the proven Mimaki UCJV-300 platform and optimized for traffic signage, work zone applications, and custom graphics. With faster start-up and no drying time, this printer is ideal for an entry-level to intermediate-sized sign shop. True Traffic Color™ spot inks and included software simplify the process of producing specification-compliant traffic control, wayfinding, and custom signage.

Meet the new TrafficJet™ Xpress

  • UV-LED ink technology supports instant lamination, so orders get out the door faster
  • The printer's simplified maintenance process makes this printer easy to use
  • Fastest start-up time, so you can go from start to print in 2 minutes
  • Reduce your carbon footprint with this Energy Star Certified printer



Request a Quote

Watch in Spanish | Portuguese

UV-LED Technology

Energy Star Certified

Fast Start Up

True Traffic Color™ spot inks

Product Overview

The TrafficJet Xpress

Learn more about the new TrafficJet Xpress.

Download arrow_forward
trafficjet-xpress-product-overview

Read in Spanish | Portuguese

Video

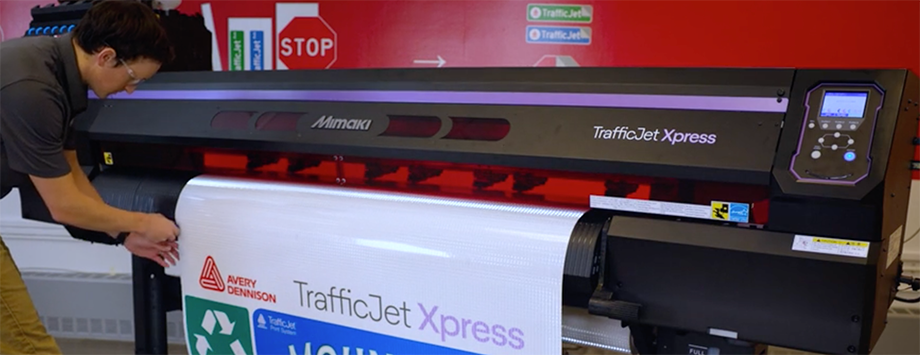

The TrafficJet Xpress Demo

See how the TrafficJet Xpress can improve your sign shop in this comprehensive demo.

Watch arrow_forward
trafficjet-xpress-demo

Watch Spanish | Portuguese

Request a Sample

Specifications



Print headDrop-on demand, piezo drive method
Print resolution300 dpi, 600 dpi, 900 dpi, 1200 dpi
Maximum print speed277.7 sf/hr (25.8 sqm/hr)
Typical traffic sign resolution300x900 dpi
Traffic sign print speedUp to 108 sf/hr (10 sqm/hr)
Ink typeTrafficJet™ True Traffic Color UV-LED inks
Color configurationTrue Traffic Color™ spot inks (CMYKRG)
Maximum media width63.8" (160 cm)
Maximum media thicknessup to 0.04" (1 mm)
Maximum roll weight88 lbs (40 kg)
InterfaceEthernet, USB
Power supplyVoltage: AC 100V~240V x2
Power consumptionAC100V: 1.44kW / AC200V: 1.92 kW
Take-up systemStandard
SoftwareFlexiPRINT Avery Dennison Edition
Operating temperature68°F–86°F
Operating humidity range35%–65%
Dimensions ( W x D x H)114.2" (290 cm) × 30.6" (77.6 cm) × 58.1" (147.5 cm)
Weight (printer)414.5 lbs (188 kg)
Dimensions (shipping info)130.5" (332 cm) x 30.6" (77.6 cm) x 58.1" (147.5 cm)
Weight (shipping info)558 lbs (253 kg)
Limited warranty1 year

Just one call

We manufacture the sheeting, the digital inks, and provide the service. Learn more about the benefits of digitally printing with Avery Dennison.
